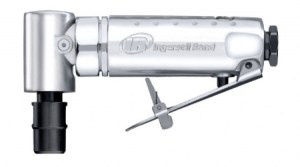

301B | 307B Die Grinders

Categories

Tags

Specifications Table and Additional Information

Model Weight (lb) Weight (kg) Length (in) Length (mm) Rated Power (hp) Rated Power (kW) Air Inlet Free Speed (RPM) Vibration Level (m/s2) Min Hose Size
(in)
Min Hose Size  (mm)  Air Consumption @ Load (cfm)  Air Consumption @ Load (L/min) Average Air Consumption (cfm) Average Air Consumption (L/min) Output Exhaust
301B 1.02 0.46 5.27 134 0.25 0.19 1/4 21000 n/a 3/8 10 24 680 6 170 1/4 in. and 6 mm Front
307B 0.73 0.33 5.19 132 0.25 0.19 1/4 28000 4.5 3/8 10 24 680 6 170 1/4 in. and 6 mm Front
