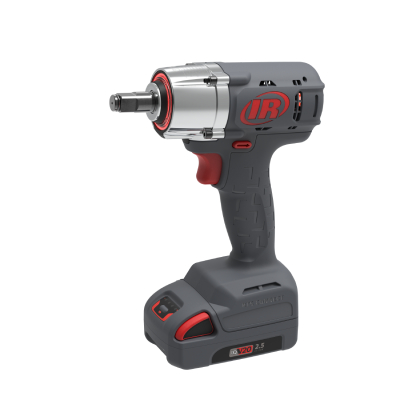

he responsive tightening system perfectly blends responsive action and torque control. The Ingersoll Rand® proprietary torque control algorithm powers the simple and flexible tightening system, changing the game in reliable fastening. Experience effortless operations with its user-friendly interface, 40 distinct torque levels, 7 flush levels, dual speed non-contact trigger, and a 360° status beam LED ring light. Featuring a lightweight and ergonomic design, the cordless impact wrench enables sustained performance in continuous production environments. With reactionless performance, robust wireless connectivity, and programmable settings, the RTS Connect is the ultimate mechanical pulse tool for those who demand perfection.
Click here to learn more about RTSÂ – the electric pulse tools setting new standards for assembly operations.
No PDF files available.
Our service department covers the majority of Michigan, including Holland, Kalamazoo, Battle Creek, Jackson, Saginaw, and Cadillac, all the way up to the Upper Peninsula (U.P.). We also stock over $600,000 worth of Kaeser parts in our facility right here in Grand Rapids. Coupled with Kaeser’s 24-hour Parts Guarantee, you can be assured we will have what it takes to minimize your downtime and keep you running.
Our services include but are not limited to the following.
| Model | Drive | Retainer Type | Fastener Size | Torque Range (in-lbs) | Torque Range (Nm) | Weight w/o Battery (lbs) | Weight w/o Battery (kg) | Length w/o Socket (in) | Length w/o Socket (mm) | Side to Center Distance (in) | Side to Center Distance (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| RTS025PQ4 | 1/4″ Hex | Quick-Change | M6-M8 | 70-220 | 8-25 | 2.3 | 1.05 | 6.1 | 155 | 1.2 | 30.5 |
| RTS060PS6 | 3/8″ Square | Pin Detent | M8-M10 | 105-530 | 12-60 | 2.4 | 1.07 | 6.4 | 163 | 1.2 | 30.5 |
| RTS060PH6 | 3/8″ Square | Hog Ring/Thru Hole | M8-M10 | 105-530 | 12-60 | 2.4 | 1.07 | 6.5 | 164 | 1.2 | 30.5 |
| RTS060PS8 | 1/2″ Square | Pin Detent | M8-M10 | 105-530 | 12-60 | 2.4 | 1.09 | 6.7 | 169 | 1.2 | 30.5 |
| RTS060PH8 | 1/2″ Square | Hog Ring/Thru Hole | M8-M10 | 105-530 | 12-60 | 2.4 | 1.09 | 6.7 | 170 | 1.2 | 30.5 |
| RTS140PS8 | 1/2″ Square | Pin Detent | M10-M14 | 265-1240 | 30-140 | 2.4 | 1.1 | 6.7 | 169 | 1.2 | 30.5 |
| RTS140PH8 | 1/2″ Square | Hog Ring/Thru Hole | M10-M14 | 265-1240 | 30-140 | 2.4 | 1.1 | 6.7 | 170 | 1.2 | 30.5 |
| RTS225PS8 | 1/2″ Square | Pin Detent | M12-M18 | 530-2000 | 60-225 | 2.5 | 1.12 | 6.7 | 169 | 1.2 | 30.5 |
| RTS225PH8 | 1/2″ Square | Hog Ring/Thru Hole | M12-M18 | 530-2000 | 60-225 | 2.5 | 1.12 | 6.7 | 170 | 1.2 | 30.5 |
| Model | Drive | Retainer Type | Fastener Size | Torque Range (in-lbs) | Torque Range (Nm) | Weight w/o Battery (lbs) | Weight w/o Battery (kg) | Length w/o Socket (in) | Length w/o Socket (mm) | Side to Center Distance (in) | Side to Center Distance (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| RTS025PQ4 | 1/4″ Hex | Quick-Change | M6-M8 | 70-220 | 8-25 | 2.3 | 1.05 | 6.1 | 155 | 1.2 | 30.5 |
| RTS060PS6 | 3/8″ Square | Pin Detent | M8-M10 | 105-530 | 12-60 | 2.4 | 1.07 | 6.4 | 163 | 1.2 | 30.5 |
| RTS060PH6 | 3/8″ Square | Hog Ring/Thru Hole | M8-M10 | 105-530 | 12-60 | 2.4 | 1.07 | 6.5 | 164 | 1.2 | 30.5 |
| RTS060PS8 | 1/2″ Square | Pin Detent | M8-M10 | 105-530 | 12-60 | 2.4 | 1.09 | 6.7 | 169 | 1.2 | 30.5 |
| RTS060PH8 | 1/2″ Square | Hog Ring/Thru Hole | M8-M10 | 105-530 | 12-60 | 2.4 | 1.09 | 6.7 | 170 | 1.2 | 30.5 |
| RTS140PS8 | 1/2″ Square | Pin Detent | M10-M14 | 265-1240 | 30-140 | 2.4 | 1.1 | 6.7 | 169 | 1.2 | 30.5 |
| RTS140PH8 | 1/2″ Square | Hog Ring/Thru Hole | M10-M14 | 265-1240 | 30-140 | 2.4 | 1.1 | 6.7 | 170 | 1.2 | 30.5 |
| RTS225PS8 | 1/2″ Square | Pin Detent | M12-M18 | 530-2000 | 60-225 | 2.5 | 1.12 | 6.7 | 169 | 1.2 | 30.5 |
| RTS225PH8 | 1/2″ Square | Hog Ring/Thru Hole | M12-M18 | 530-2000 | 60-225 | 2.5 | 1.12 | 6.7 | 170 | 1.2 | 30.5 |
