Our service department covers the majority of Michigan, including Holland, Kalamazoo, Battle Creek, Jackson, Saginaw, and Cadillac, all the way up to the Upper Peninsula (U.P.). We also stock over $600,000 worth of Kaeser parts in our facility right here in Grand Rapids. Coupled with Kaeser’s 24-hour Parts Guarantee, you can be assured we will have what it takes to minimize your downtime and keep you running.
Our services include but are not limited to the following.
| Model | Configuration | Actuation | Weight (lb) | Weight (kg) | Length (in) | Length (mm) | Width (in) |
Width (mm) | Height  (in) |
Height (mm) |
Air Inlet | Drive Size | Drive Type | Max Reverse Torque (ft-lb) | Max Reverse Torque (Nm) | Blows per minute | Free Speed (RPM) | Impacting Sound Level dB(A) — ISO15744 (pressure/power) | Free Speed Sound Level dB(A) — CAGI/ANSI S12.41 (pressure/power) | Vibration Level (m/s2) | Min Hose Size (in) |
Min Hose Size (mm) | Average Air Consumption (cfm) | Average Air Consumption (L/min) |

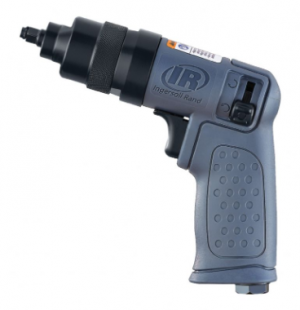

| 2101KA | Pistol | Trigger | 1.5 | 0.68 | 6.9 | 175 | 1.7 | 43 | 5.9 | 150 | 1/4 in. | 1/4 in. | Square, Hog-Ring | N/A | N/A | N/A | N/A | N/A | N/A | N/A | 3/8 | 10 | N/A | N/A |
| 2101XPA | Pistol | Trigger | 1.5 | 0.68 | 6.9 | 175 | 1.7 | 43 | 5.9 | 150 | 1/4 in. | 1/4 in. | Square, Hog Ring | 55 | 75 | 3650 | 14500 | 84.8/95.8 | 83.6/94.6 | 3 | 3/8 | 10 | 13.5 | 382 |
| 2101XPA-QC | Pistol | Trigger | 1.6 | 0.73 | 7.2 | 183 | 1.7 | 43 | 6.1 | 155 | 1/4 in. | 1/4 in. | Hex, Quick Change, Sleeve | 55 | 75 | 3650 | 14500 | 84.8/95.8 | 83.6/94.6 | 3 | 3/8 | 10 | 13.5 | 382 |
| 2102XPA | Pistol | Trigger | 1.6 | 0.73 | 6.8 | 173 | 1.7 | 43 | 6.1 | 155 | 1/4 in. | 3/8 in. | Square, Hog Ring | 55 | 75 | 3650 | 14500 | 84.8/95.8 | 83.6/94.6 | 3 | 3/8 | 10 | 13.5 | 382 |
| Model | Configuration | Actuation | Weight (lb) | Weight (kg) | Length (in) | Length (mm) | Width (in) |
Width (mm) | Height  (in) |
Height (mm) |
Air Inlet | Drive Size | Drive Type | Max Reverse Torque (ft-lb) | Max Reverse Torque (Nm) | Blows per minute | Free Speed (RPM) | Impacting Sound Level dB(A) — ISO15744 (pressure/power) | Free Speed Sound Level dB(A) — CAGI/ANSI S12.41 (pressure/power) | Vibration Level (m/s2) | Min Hose Size (in) |
Min Hose Size (mm) | Average Air Consumption (cfm) | Average Air Consumption (L/min) |
| 2101KA | Pistol | Trigger | 1.5 | 0.68 | 6.9 | 175 | 1.7 | 43 | 5.9 | 150 | 1/4 in. | 1/4 in. | Square, Hog-Ring | N/A | N/A | N/A | N/A | N/A | N/A | N/A | 3/8 | 10 | N/A | N/A |
| 2101XPA | Pistol | Trigger | 1.5 | 0.68 | 6.9 | 175 | 1.7 | 43 | 5.9 | 150 | 1/4 in. | 1/4 in. | Square, Hog Ring | 55 | 75 | 3650 | 14500 | 84.8/95.8 | 83.6/94.6 | 3 | 3/8 | 10 | 13.5 | 382 |
| 2101XPA-QC | Pistol | Trigger | 1.6 | 0.73 | 7.2 | 183 | 1.7 | 43 | 6.1 | 155 | 1/4 in. | 1/4 in. | Hex, Quick Change, Sleeve | 55 | 75 | 3650 | 14500 | 84.8/95.8 | 83.6/94.6 | 3 | 3/8 | 10 | 13.5 | 382 |
| 2102XPA | Pistol | Trigger | 1.6 | 0.73 | 6.8 | 173 | 1.7 | 43 | 6.1 | 155 | 1/4 in. | 3/8 in. | Square, Hog Ring | 55 | 75 | 3650 | 14500 | 84.8/95.8 | 83.6/94.6 | 3 | 3/8 | 10 | 13.5 | 382 |
