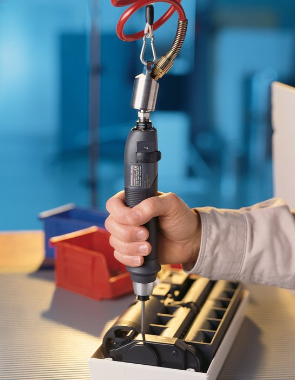

Q2 Series Inline Adjustable Shut-off

Q2 Series Inline Direct Drive
Q2 Series Inline Direct Drive
Q2 Series Inline Adj Shut off

Categories

Tags

Specifications Table and Additional Information

Model Actuation Torque Range (Nm) Torque Range (in-lbs) Weight (lb) Weight (kg) Length (in) Length (mm) Side to Center (mm) Side to Center (in) Sound Level dB(A) Air Inlet cfm Free Speed (RPM) Spindle Type
QS1L02S1D Lever Start 0.3 – 5.4 3.0 – 47.8 1.5 0.7 9.5 241 22 0.9 75 1/4 in. NPT 16 250 1/4 in. Hex Quick Change
QS1L05S1D Lever Start 0.3 – 5.4 3.0 – 47.8 1.5 0.7 9.5 241 22 0.9 75 1/4 in. NPT 16 500 1/4 in. Hex Quick Change
QS1L10S1D Lever Start 0.3 – 4.5 3.0 – 40.0 1.5 0.7 9.5 241 22 0.9 75 1/4 in. NPT 16 1000 1/4 in. Hex Quick Change
QS1L15S1D Lever Start 0.3 – 3.1 3.0 – 27.4 1.5 0.7 9.5 241 22 0.9 75 1/4 in. NPT 16 1500 1/4 in. Hex Quick Change
QS1L17S1D Lever Start 0.3 – 3.1 3.0 – 27.3 1.53 0.69 9.5 241 22 0.87 N/A N/A 16 1710 1/4 in. Hex Quick Change
QS1L17S5D Lever Start 0.3 – 3.1 3.0 – 27.3 1.53 0.69 9.5 241 22 0.87 N/A N/A 16 1710 5 mm Double End Quick Change
QS1L17S7D Lever Start 0.3 – 3.1 3.0 – 27.3 1.53 0.69 9.5 241 22 0.87 N/A N/A 16 1710 1/4 in. Double End Quick Change
QS1L20S1D Lever Start 0.3 – 2.5 3.0 – 22.1 1.53 0.69 9.5 241 22 0.87 N/A N/A 16 2000 1/4 in. Hex Quick Change
QS1P02S1D Push to Start 0.3 – 5.4 3.0 – 47.8 1.4 0.6 8.8 223 22 0.9 75 1/4 in. NPT 16 250 1/4 in. Hex Quick Change
QS1P05S1D Push to Start 0.3 – 5.4 3.0 – 47.8 1.4 0.6 8.8 223 22 0.9 75 1/4 in. NPT 16 500 1/4 in. Hex Quick Change
QS1P05S3D Push to Start 0.3 – 5.4 3.0 – 47.8 1.4 0.6 8.8 223 22 0.9 75 1/4 in. NPT 16 500 1/4 in. Hex Bit Finder
QS1P10S1D Push to Start 0.3 – 4.5 3.0 – 40.0 1.4 0.6 8.8 223 22 0.9 75 1/4 in. NPT 16 1000 1/4 in. Hex Quick Change
QS1P10S3D Push to Start 0.3 – 4.5 3.0 – 40.0 1.4 0.6 8.8 223 22 0.9 75 1/4 in. NPT 16 1000 1/4 in. Hex Bit Finder
QS1P17S1D Push to Start 0.3 – 3.1 3.0 – 27.3 1.37 0.62 8.8 223 22 0.87 N/A N/A 16 1710 1/4 in. Hex Quick Change
QS1P17S3D Push to Start 0.3 – 3.1 3.0 – 27.3 1.37 0.62 8.8 223 22 0.87 N/A N/A 16 1710 1/4 in. Hex Bit Finder
QS1P20S1D Push to Start 0.3 – 2.5 3.0 – 22.1 1.4 0.6 8.8 223 22 0.9 75 1/4 in. NPT 16 2000 1/4 in. Hex Quick Change
QS1P20S3D Push to Start 0.3 – 2.5 3.0 – 22.1 1.37 0.62 8.8 223 22 0.87 N/A N/A 16 2000 1/4 in. Hex Bit Finder
QS1P28S1D Push to Start 0.3 – 1.1 3.0 – 9.7 1.37 0.62 8.8 223 22 0.87 N/A N/A 16 2800 1/4 in. Hex Quick Change
QS1T02S1D Lever + Push to Start 0.3 – 5.4 3.0 – 47.8 1.5 0.7 9.5 241 22 0.9 75 1/4 in. NPT 16 250 1/4 in. Hex Quick Change
QS1T05S1D Lever + Push to Start 0.3 – 5.4 3.0 – 47.8 1.5 0.7 9.5 241 22 0.9 75 1/4 in. NPT 16 500 1/4 in. Hex Quick Change
QS1T10S1D Lever + Push to Start 0.3 – 4.5 3.0 – 40.0 1.5 0.7 9.5 241 22 0.9 75 1/4 in. NPT 16 1000 1/4 in. Hex Quick Change
QS1T17S1D Lever + Push to Start 0.3 – 3.1 3.0 – 27.3 1.53 0.69 9.5 341 22 0.87 N/A N/A 16 1710 1/4 in. Hex Quick Change
QS1T20S1D Lever + Push to Start 0.3 – 2.5 3.0 – 22.1 1.5 0.7 9.5 241 22 0.9 75 1/4 in. NPT 16 2000 1/4 in. Hex Quick Change
