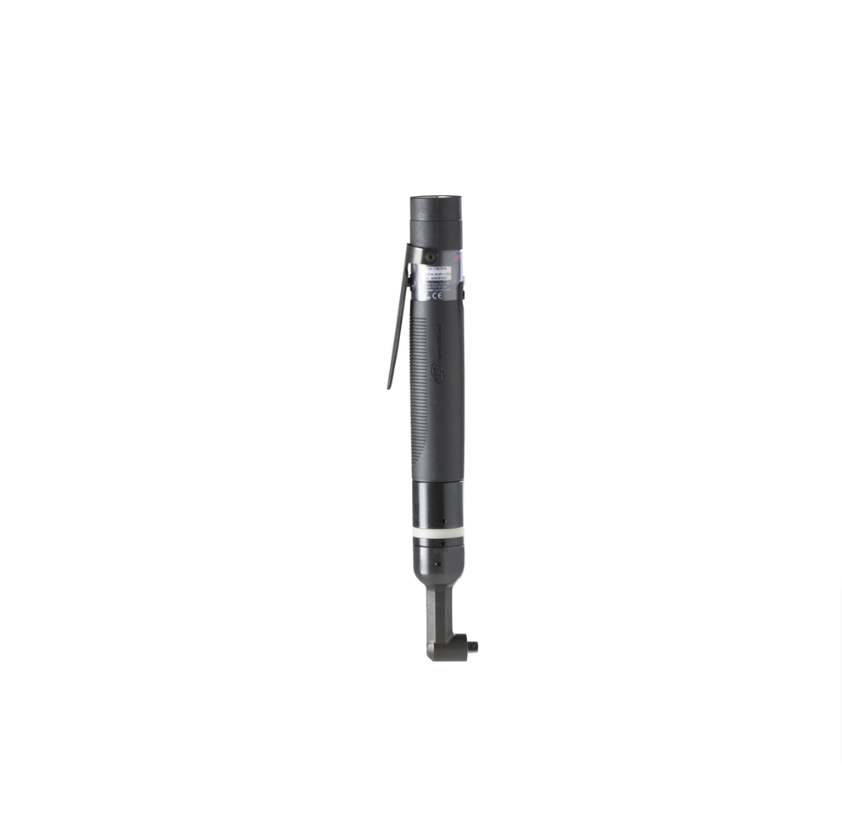

Compact, lightweight and high-speed, the QE2 Angle Series provide superior accuracy, ergonomics and durability to meet your critical fastening requirements and maximize your productivity. Featuring a torque range from 0.3 Nm to 15 Nm.
No PDF files available.
Our service department covers the majority of Michigan, including Holland, Kalamazoo, Battle Creek, Jackson, Saginaw, and Cadillac, all the way up to the Upper Peninsula (U.P.). We also stock over $600,000 worth of Kaeser parts in our facility right here in Grand Rapids. Coupled with Kaeser’s 24-hour Parts Guarantee, you can be assured we will have what it takes to minimize your downtime and keep you running.
Our services include but are not limited to the following.
| Model | Torque Range (Nm) | Torque Range (in-lbs) | Torque Range (ft-lbs) | Max Torque (Nm) | Actuation | Configuration | Free Speed (rpm) | Spindle Length (mm) | Float (mm) | Overall Length (mm) | Length (in) | Weight (kg) | Weight (lbs) | Drive (size/style) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| QE2AL003PA1S04 | 0.8 – 4 | 7.1 – 35.4 | 0.6 – 3.0 | 3 | Lever Start | Angle | 2000 | N/A | N/A | 312 | 12.28 | 0.83 | 1.82 | 1/4 in. Square |
| QE2AL005PA3S06 | 1.0 – 5.0 | 8.9 – 44.3 | 0.7 – 3.7 | 5 | Lever Start | Angle | 1590 | N/A | N/A | 318 | 12.52 | 0.95 | 2.10 | 3/8 in. Square |
| QE2AL007PA3H04 | 1.4 – 7.0 | 12.4 – 62.0 | 1.0 – 5.2 | 7 | Lever Start | Angle | 1100 | N/A | N/A | 318 | 12.52 | 0.95 | 2.10 | 1/4 in. Hex Detent |
| QE2AL010PA3S04 | 2.0 – 10.0 | 17.7 – 88.5 | 1.5 – 7.4 | 10 | Lever Start | Angle | 800 | N/A | N/A | 318 | 12.52 | 0.95 | 2.10 | 1/4 in. Square |
| QE2AL015PA3Q04 | 3.0 – 15.0 | 26.6 – 132.8 | 2.2 – 11.1 | 15 | Lever Start | Angle | 560 | N/A | N/A | 318 | 12.52 | 0.95 | 2.10 | 1/4 in. Quick Change |
| Model | Torque Range (Nm) | Torque Range (in-lbs) | Torque Range (ft-lbs) | Max Torque (Nm) | Actuation | Configuration | Free Speed (rpm) | Spindle Length (mm) | Float (mm) | Overall Length (mm) | Length (in) | Weight (kg) | Weight (lbs) | Drive (size/style) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| QE2AL003PA1S04 | 0.8 – 4 | 7.1 – 35.4 | 0.6 – 3.0 | 3 | Lever Start | Angle | 2000 | N/A | N/A | 312 | 12.28 | 0.83 | 1.82 | 1/4 in. Square |
| QE2AL005PA3S06 | 1.0 – 5.0 | 8.9 – 44.3 | 0.7 – 3.7 | 5 | Lever Start | Angle | 1590 | N/A | N/A | 318 | 12.52 | 0.95 | 2.10 | 3/8 in. Square |
| QE2AL007PA3H04 | 1.4 – 7.0 | 12.4 – 62.0 | 1.0 – 5.2 | 7 | Lever Start | Angle | 1100 | N/A | N/A | 318 | 12.52 | 0.95 | 2.10 | 1/4 in. Hex Detent |
| QE2AL010PA3S04 | 2.0 – 10.0 | 17.7 – 88.5 | 1.5 – 7.4 | 10 | Lever Start | Angle | 800 | N/A | N/A | 318 | 12.52 | 0.95 | 2.10 | 1/4 in. Square |
| QE2AL015PA3Q04 | 3.0 – 15.0 | 26.6 – 132.8 | 2.2 – 11.1 | 15 | Lever Start | Angle | 560 | N/A | N/A | 318 | 12.52 | 0.95 | 2.10 | 1/4 in. Quick Change |
