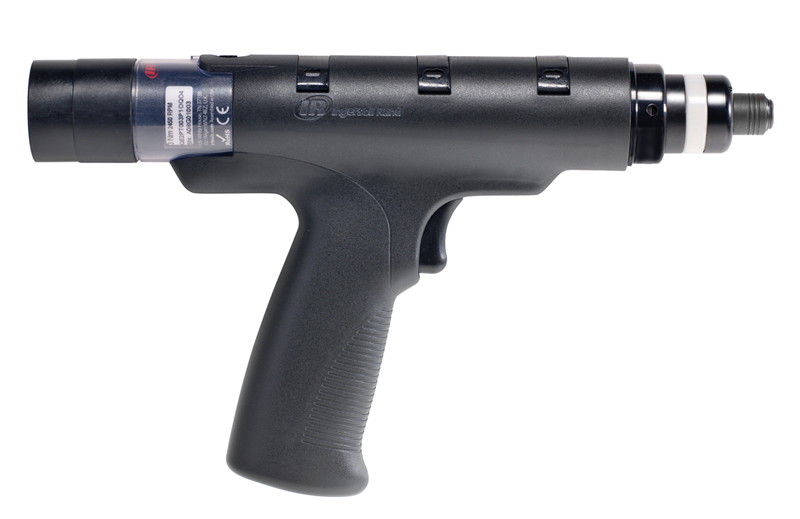

With a torque range of 0.3 Nm to 10 Nm and speeds up to 3,000 rpm, the QE2 Pistol is an excellent tool for all of your fastening needs.
No PDF files available.
Our service department covers the majority of Michigan, including Holland, Kalamazoo, Battle Creek, Jackson, Saginaw, and Cadillac, all the way up to the Upper Peninsula (U.P.). We also stock over $600,000 worth of Kaeser parts in our facility right here in Grand Rapids. Coupled with Kaeser’s 24-hour Parts Guarantee, you can be assured we will have what it takes to minimize your downtime and keep you running.
Our services include but are not limited to the following.
| Model | Torque Range (Nm) | Torque Range (in-lbs) | Torque Range (ft-lbs) | Max Torque (Nm) | Actuation | Configuration | Free Speed (rpm) | Spindle Length (mm) | Float (mm) | Overall Length (mm) | Length (in) | Weight (kg) | Weight (lbs) | Drive (size/style) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| QE2PP002P11Q04 | 0.3 – 1.5 | 2.7 – 13.3 | 0.2 – 1.1 | 2 | Trigger + Push-to-Start | Pistol | 3000 | N/A | N/A | 250 | 9.84 | 0.66 | 1.46 | 1/4 in. Quick Change |
| QE2PP002P11S04 | 0.3 – 1.5 | 2.7 – 13.3 | 0.2 – 1.1 | 2 | Trigger + Push-to-Start | Pistol | 3000 | N/A | N/A | 242 | 9.53 | 0.66 | 1.46 | 1/4 in. Square |
| QE2PP003P11Q04 | 0.6 – 3.0 | 5.3 – 26.6 | 0.4 – 2.2 | 3 | Trigger + Push-to-Start | Pistol | 2450 | N/A | N/A | 250 | 9.84 | 0.66 | 1.46 | 1/4 in. Quick Change |
| QE2PP003P11S04 | 0.6 – 3.0 | 5.3 – 26.6 | 0.4 – 2.2 | 3 | Trigger + Push-to-Start | Pistol | 2450 | N/A | N/A | 242 | 9.53 | 0.66 | 1.46 | 1/4 in. Square |
| QE2PP005P11Q04 | 1.0 – 5.0 | 8.9 – 44.3 | 0.7 – 3.7 | 5 | Trigger + Push-to-Start | Pistol | 1700 | N/A | N/A | 250 | 9.84 | 0.66 | 1.46 | 1/4 in. Quick Change |
| QE2PP005P11S04 | 1.0 – 5.0 | 8.9 – 44.3 | 0.7 – 3.7 | 5 | Trigger + Push-to-Start | Pistol | 1700 | N/A | N/A | 242 | 9.53 | 0.66 | 1.46 | 1/4 in. Square |
| Model | Torque Range (Nm) | Torque Range (in-lbs) | Torque Range (ft-lbs) | Max Torque (Nm) | Actuation | Configuration | Free Speed (rpm) | Spindle Length (mm) | Float (mm) | Overall Length (mm) | Length (in) | Weight (kg) | Weight (lbs) | Drive (size/style) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| QE2PP002P11Q04 | 0.3 – 1.5 | 2.7 – 13.3 | 0.2 – 1.1 | 2 | Trigger + Push-to-Start | Pistol | 3000 | N/A | N/A | 250 | 9.84 | 0.66 | 1.46 | 1/4 in. Quick Change |
| QE2PP002P11S04 | 0.3 – 1.5 | 2.7 – 13.3 | 0.2 – 1.1 | 2 | Trigger + Push-to-Start | Pistol | 3000 | N/A | N/A | 242 | 9.53 | 0.66 | 1.46 | 1/4 in. Square |
| QE2PP003P11Q04 | 0.6 – 3.0 | 5.3 – 26.6 | 0.4 – 2.2 | 3 | Trigger + Push-to-Start | Pistol | 2450 | N/A | N/A | 250 | 9.84 | 0.66 | 1.46 | 1/4 in. Quick Change |
| QE2PP003P11S04 | 0.6 – 3.0 | 5.3 – 26.6 | 0.4 – 2.2 | 3 | Trigger + Push-to-Start | Pistol | 2450 | N/A | N/A | 242 | 9.53 | 0.66 | 1.46 | 1/4 in. Square |
| QE2PP005P11Q04 | 1.0 – 5.0 | 8.9 – 44.3 | 0.7 – 3.7 | 5 | Trigger + Push-to-Start | Pistol | 1700 | N/A | N/A | 250 | 9.84 | 0.66 | 1.46 | 1/4 in. Quick Change |
| QE2PP005P11S04 | 1.0 – 5.0 | 8.9 – 44.3 | 0.7 – 3.7 | 5 | Trigger + Push-to-Start | Pistol | 1700 | N/A | N/A | 242 | 9.53 | 0.66 | 1.46 | 1/4 in. Square |
