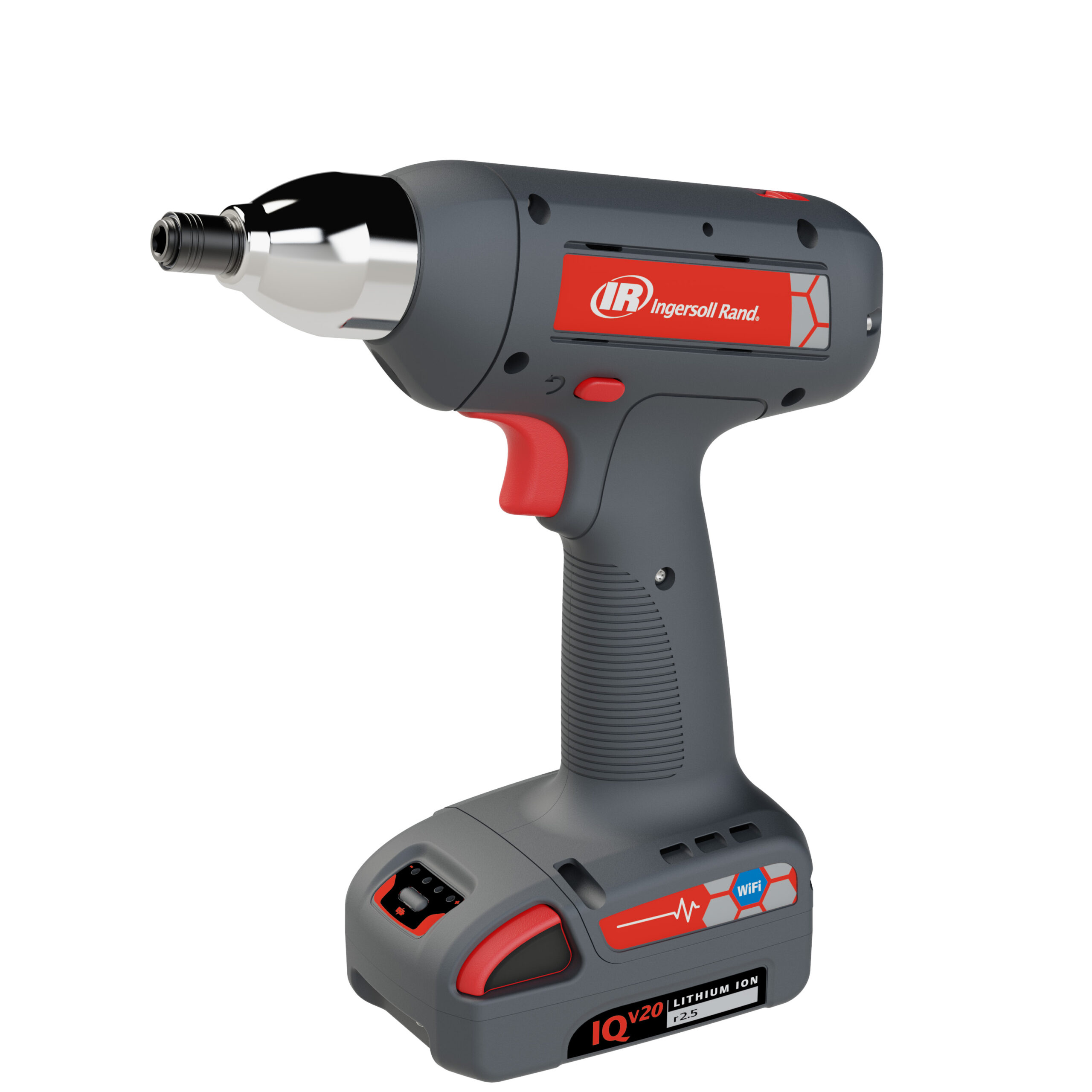

QX Connected Series has been instrumental in helping more organizations take control of their fastening processes through its simple, flexible, and capable performance. Now, with the introduction of the QX Limitless platform we’re adding ‘connected, controlled, and compliant’ to the bottom line. Dual-band communication technology delivers a seamless, uninterrupted connection—and across a greater communication rage than other cordless fastening systems can offer. QX Limitless can accommodate more tools in a single system, too—up to 10 tools on INSIGHTqcx™ controllers. Plus, it keeps unwanted connections at bay, meeting more of today’s stringent corporate cybersecurity regulations to ensure greater data protection. Add in speedy data transfer and multiple programming methods, and there’s simply no limit to the impact the QX Limitless system can have on your fastening projects and applications.
No PDF files available.
Our service department covers the majority of Michigan, including Holland, Kalamazoo, Battle Creek, Jackson, Saginaw, and Cadillac, all the way up to the Upper Peninsula (U.P.). We also stock over $600,000 worth of Kaeser parts in our facility right here in Grand Rapids. Coupled with Kaeser’s 24-hour Parts Guarantee, you can be assured we will have what it takes to minimize your downtime and keep you running.
Our services include but are not limited to the following.
| Model | Torque Range (in-lbs) | Torque Range (Nm) | Free Speed (RPM) | Weight w/out Battery (lbs/kg) | Length (in/mm) | Side to Center (in/mm) | Battery Type | Drive Size/Type | Communication 1 | Communication 2 | Display |
|---|---|---|---|---|---|---|---|---|---|---|---|
| QXFN2PT008ES06 | 14–70 | 1.6-8 | 1150 | 2.0 (0.91) | 7.99 (203) | 1.02 (26) | 20V | 3/8” Square | Via USB Cable | Via USB Cable | NO |
| QXFD2PT008ES06 | 14–70 | 1.6-8 | 1150 | 2.0 (0.91) | 7.99 (203) | 1.02 (26) | 20V | 3/8” Square | Via USB Cable | Via USB Cable | YES |
| QXBN2PT008ES06 | 14–70 | 1.6-8 | 1150 | 2.0 (0.91) | 7.99 (203) | 1.02 (26) | 20V | 3/8” Square | Via USB Cable | Bluetooth Only | NO |
| QXFN2PT008EQ04 | 14–70 | 1.6-8 | 1150 | 2.0 (0.91) | 8.13 (206.5) | 1.02 (26) | 20V | 1/4” Quick Change | Via USB Cable | Via USB Cable | NO |
| QXFD2PT024ES06 | 42–212 | 4.8-24 | 500 | 2.0 (0.91) | 8.35 (212) | 1.02 (26) | 20V | 3/8” Square | Via USB Cable | Via USB Cable | YES |
| QXFN5AT080ES08 | 8.80–59.0 | 12.0-80 | 375 | 5.0 (2.27) | 23.1 (586.1) | 0.85 (21.6) | 40V | 1/2” Square | Via USB Cable | Via USB Cable | NO |
| QXWD2PT018EQ04 | 32–159 | 3.6-18 | 500 | 2.0 (0.91) | 8.13 (206.5) | 1.02 (26) | 20V | 1/4” Quick Change | WLAN 2.4 & 5 GHz, USB, BLE & ZB | Wireless | YES |
| Model | Torque Range (in-lbs) | Torque Range (Nm) | Free Speed (RPM) | Weight w/out Battery (lbs/kg) | Length (in/mm) | Side to Center (in/mm) | Battery Type | Drive Size/Type | Communication 1 | Communication 2 | Display |
|---|---|---|---|---|---|---|---|---|---|---|---|
| QXFN2PT008ES06 | 14–70 | 1.6-8 | 1150 | 2.0 (0.91) | 7.99 (203) | 1.02 (26) | 20V | 3/8” Square | Via USB Cable | Via USB Cable | NO |
| QXFD2PT008ES06 | 14–70 | 1.6-8 | 1150 | 2.0 (0.91) | 7.99 (203) | 1.02 (26) | 20V | 3/8” Square | Via USB Cable | Via USB Cable | YES |
| QXBN2PT008ES06 | 14–70 | 1.6-8 | 1150 | 2.0 (0.91) | 7.99 (203) | 1.02 (26) | 20V | 3/8” Square | Via USB Cable | Bluetooth Only | NO |
| QXFN2PT008EQ04 | 14–70 | 1.6-8 | 1150 | 2.0 (0.91) | 8.13 (206.5) | 1.02 (26) | 20V | 1/4” Quick Change | Via USB Cable | Via USB Cable | NO |
| QXFD2PT024ES06 | 42–212 | 4.8-24 | 500 | 2.0 (0.91) | 8.35 (212) | 1.02 (26) | 20V | 3/8” Square | Via USB Cable | Via USB Cable | YES |
| QXFN5AT080ES08 | 8.80–59.0 | 12.0-80 | 375 | 5.0 (2.27) | 23.1 (586.1) | 0.85 (21.6) | 40V | 1/2” Square | Via USB Cable | Via USB Cable | NO |
| QXWD2PT018EQ04 | 32–159 | 3.6-18 | 500 | 2.0 (0.91) | 8.13 (206.5) | 1.02 (26) | 20V | 1/4” Quick Change | WLAN 2.4 & 5 GHz, USB, BLE & ZB | Wireless | YES |
