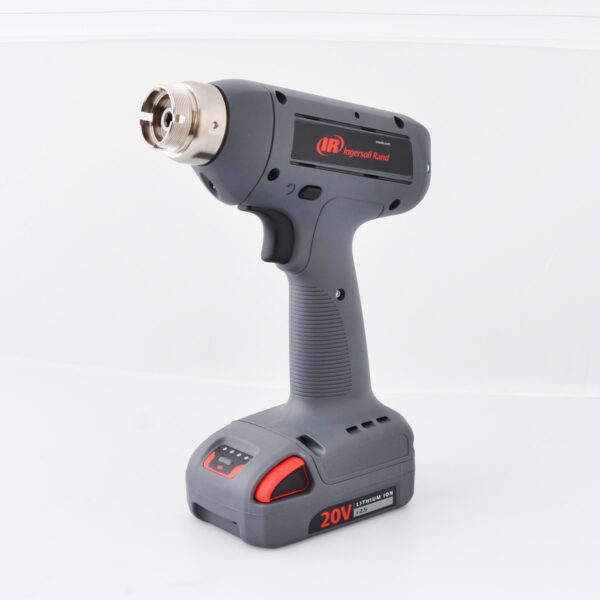

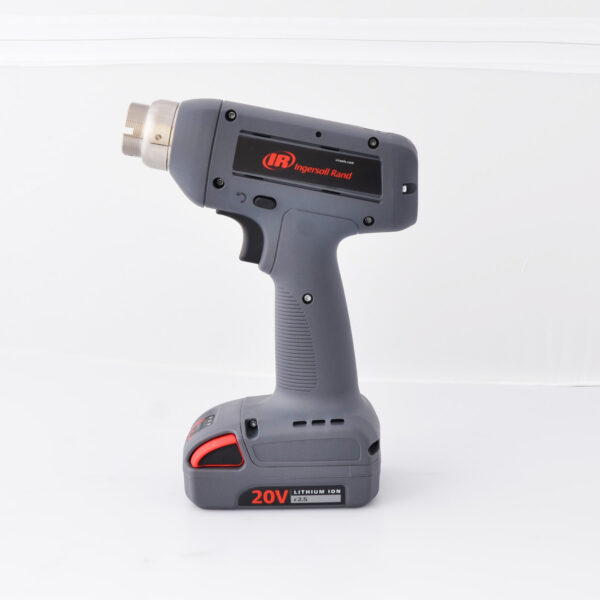

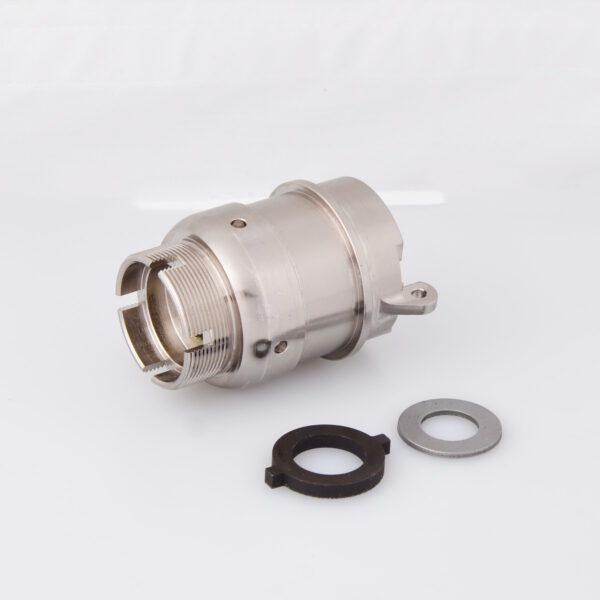

The Ingersoll Rand® QX Pistol Special Head Adapter simplifies how manufacturers use specialty attachments for fastening operations with any Ingersoll Rand® QX Series™ pistol grip tool. The Special Head Adapter increases the flexibility of the QX Series™ tools and eliminates the need for challenging customization’s of the tool in order to integrate special attachments. Using the Special Adapter, manufacturers in the motor vehicle industry, heavy equipment, truck and bus, aerospace and general assembly sectors can leverage the closed-loop transducerized control of a QX Series™ tool while using a variety of industry-specific specialty attachments that have previously been challenging to integrate.
No PDF files available.
Our service department covers the majority of Michigan, including Holland, Kalamazoo, Battle Creek, Jackson, Saginaw, and Cadillac, all the way up to the Upper Peninsula (U.P.). We also stock over $600,000 worth of Kaeser parts in our facility right here in Grand Rapids. Coupled with Kaeser’s 24-hour Parts Guarantee, you can be assured we will have what it takes to minimize your downtime and keep you running.
Our services include but are not limited to the following.
| Model | Configuration | Torque Range (Nm) | Torque Range (ft-lbs) | Free Speed (RPM) | Drive Size/Type | Communication | Battery Type | Weight w/out Battery (kg) | Weight w/out Battery (lbs) | Side to Center (mm) | Side To Center (in) | Length (mm) | Length (in) | Height (mm) | Height (in) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| QXN5AT20PS06 | Right Angle | 4.0-20 | 2.9-14.8 | 1045 | 3/8 in. Square | USB Only | 40V Li-ion | 2.04 | 4.5 | 13.1 | 0.52 | 577.7 | 22.74 | 100 | 3.94 |
| QXN5AT30PS06 | Right Angle | 6.0-30 | 4.4-22.1 | 775 | 3/8 in. Square | USB Only | 40V Li-ion | 2.18 | 4.8 | 17.2 | 0.68 | 581.8 | 22.91 | 100 | 3.94 |
| QXN5AT30PS08 | Right Angle | 6.0-30 | 4.4-22.1 | 775 | 1/2 in. Square | USB Only | 40V Li-ion | 2.18 | 4.8 | 17.2 | 0.68 | 581.8 | 22.91 | 100 | 3.94 |
| QXN5AT35PS06 | Right Angle | 7.0-35 | 5.2-25.8 | 640 | 3/8 in. Square | USB Only | 40V Li-ion | 2.18 | 4.8 | 17.2 | 0.68 | 581.8 | 22.91 | 100 | 3.94 |
| QXN5AT35PS08 | Right Angle | 7.0-35 | 5.2-25.8 | 640 | 1/2 in. Square | USB Only | 40V Li-ion | 2.18 | 4.8 | 17.2 | 0.68 | 581.8 | 22.91 | 100 | 3.94 |
| QXN5AT40ES08 | Right Angle-ETS | 8.0-40 | 5.9-29.5 | 545 | 1/2 in. Square | USB Only | 40V Li-ion | 2.27 | 5.0 | 21.6 | 0.85 | 586.1 | 23.07 | 100 | 3.94 |
| QXN5AT40PS08 | Right Angle | 8.0-40 | 5.9-29.5 | 545 | 1/2 in. Square | USB Only | 40V Li-ion | 2.27 | 5.0 | 21.6 | 0.85 | 586.1 | 23.07 | 100 | 3.94 |
| QXN5AT80ES08 | Right Angle-ETS | 12.0-80 | 8.8-59.0 | 375 | 1/2 in. Square | USB Only | 40V Li-ion | 2.27 | 5.0 | 21.6 | 0.85 | 586.1 | 23.07 | 100 | 3.94 |
| QXN5AT80PS08 | Right Angle | 12.0-80 | 8.8-59.0 | 375 | 1/2 in. Square | USB Only | 40V Li-ion | 2.27 | 5.0 | 21.6 | 0.85 | 586.1 | 23.07 | 100 | 3.94 |
| Model | Configuration | Torque Range (Nm) | Torque Range (ft-lbs) | Free Speed (RPM) | Drive Size/Type | Communication | Battery Type | Weight w/out Battery (kg) | Weight w/out Battery (lbs) | Side to Center (mm) | Side To Center (in) | Length (mm) | Length (in) | Height (mm) | Height (in) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| QXN5AT20PS06 | Right Angle | 4.0-20 | 2.9-14.8 | 1045 | 3/8 in. Square | USB Only | 40V Li-ion | 2.04 | 4.5 | 13.1 | 0.52 | 577.7 | 22.74 | 100 | 3.94 |
| QXN5AT30PS06 | Right Angle | 6.0-30 | 4.4-22.1 | 775 | 3/8 in. Square | USB Only | 40V Li-ion | 2.18 | 4.8 | 17.2 | 0.68 | 581.8 | 22.91 | 100 | 3.94 |
| QXN5AT30PS08 | Right Angle | 6.0-30 | 4.4-22.1 | 775 | 1/2 in. Square | USB Only | 40V Li-ion | 2.18 | 4.8 | 17.2 | 0.68 | 581.8 | 22.91 | 100 | 3.94 |
| QXN5AT35PS06 | Right Angle | 7.0-35 | 5.2-25.8 | 640 | 3/8 in. Square | USB Only | 40V Li-ion | 2.18 | 4.8 | 17.2 | 0.68 | 581.8 | 22.91 | 100 | 3.94 |
| QXN5AT35PS08 | Right Angle | 7.0-35 | 5.2-25.8 | 640 | 1/2 in. Square | USB Only | 40V Li-ion | 2.18 | 4.8 | 17.2 | 0.68 | 581.8 | 22.91 | 100 | 3.94 |
| QXN5AT40ES08 | Right Angle-ETS | 8.0-40 | 5.9-29.5 | 545 | 1/2 in. Square | USB Only | 40V Li-ion | 2.27 | 5.0 | 21.6 | 0.85 | 586.1 | 23.07 | 100 | 3.94 |
| QXN5AT40PS08 | Right Angle | 8.0-40 | 5.9-29.5 | 545 | 1/2 in. Square | USB Only | 40V Li-ion | 2.27 | 5.0 | 21.6 | 0.85 | 586.1 | 23.07 | 100 | 3.94 |
| QXN5AT80ES08 | Right Angle-ETS | 12.0-80 | 8.8-59.0 | 375 | 1/2 in. Square | USB Only | 40V Li-ion | 2.27 | 5.0 | 21.6 | 0.85 | 586.1 | 23.07 | 100 | 3.94 |
| QXN5AT80PS08 | Right Angle | 12.0-80 | 8.8-59.0 | 375 | 1/2 in. Square | USB Only | 40V Li-ion | 2.27 | 5.0 | 21.6 | 0.85 | 586.1 | 23.07 | 100 | 3.94 |
