With logical component layout and exceptional attention to detail, Kaeser’s 2-stage oil-free air compressor were designed specifically with the user in mind. Kaeser’s renowned quality offers peace of and built for a lifetime reliability, even in ambient temperatures up to +115°F.
Your benefits
With logical component layout and exceptional attention to detail, Kaeser’s 2-stage oil-free air compressor were designed specifically with the user in mind. Kaeser’s renowned quality offers peace of and built for a lifetime reliability, even in ambient temperatures up to +115°F.
Your benefits

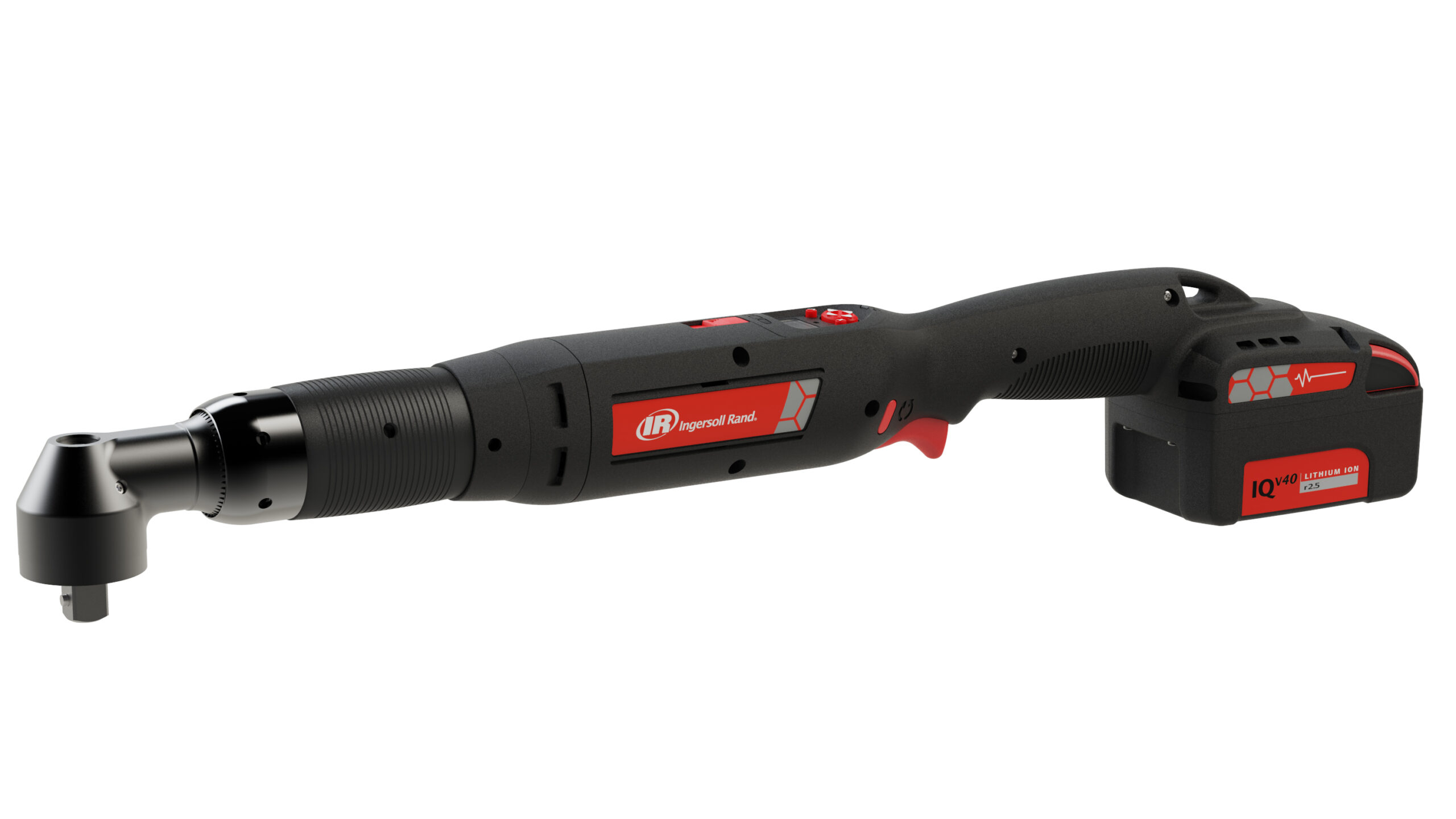

| Model | Configuration | Torque Range (Nm) | Torque Range (ft-lbs) | Free Speed (RPM) | Drive Size/Type | Communication | Display | Battery Type | Weight w/out Battery (kg) | Weight w/out Battery (lbs) | Side to Center (mm) | Side to Center (in) | Length (mm) | Length (in) | Height (mm) | Height (in) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| QXFD5AT020PS06 | Right Angle | 4.0-20 | 2.9 -14.8 | 1045 | 3/8 in. Square | USB Only | Yes | 40V Li-ion | 2.04 | 4.5 | 13.1 | 0.52 | 577.7 | 22.74 | 100 | 3.94 |
| QXFD5AT030PS06 | Right Angle | 6.0-30 | 4.4-22.1 | 775 | 3/8 in. Square | USB Only | Yes | 40V Li-ion | 2.18 | 4.8 | 17.2 | 0.68 | 581.8 | 22.91 | 100 | 3.94 |
| QXFD5AT030PS08 | Right Angle | 6.0-30 | 4.4-22.1 | 775 | 1/2 in. Square | USB Only | Yes | 40V Li-ion | 2.18 | 4.8 | 17.2 | 0.68 | 581.8 | 22.91 | 100 | 3.94 |
| QXFD5AT035PS06 | Right Angle | 7.0-35 | 5.2-25.8 | 640 | 3/8 in. Square | USB Only | Yes | 40V Li-ion | 2.18 | 4.8 | 17.2 | 0.68 | 581.8 | 22.91 | 100 | 3.94 |
| QXFD5AT035PS08 | Right Angle | 7.0-35 | 5.2-25.8 | 640 | 1/2 in. Square | USB Only | Yes | 40V Li-ion | 2.18 | 4.8 | 17.2 | 0.68 | 581.8 | 22.91 | 100 | 3.94 |
| QXFD5AT040ES08 | Right Angle-ETS | 8.0-40 | 5.9-29.5 | 545 | 1/2 in. Square | USB Only | Yes | 40V Li-ion | 2.27 | 5 | 21.6 | 0.85 | 586.1 | 23.07 | 100 | 3.94 |
