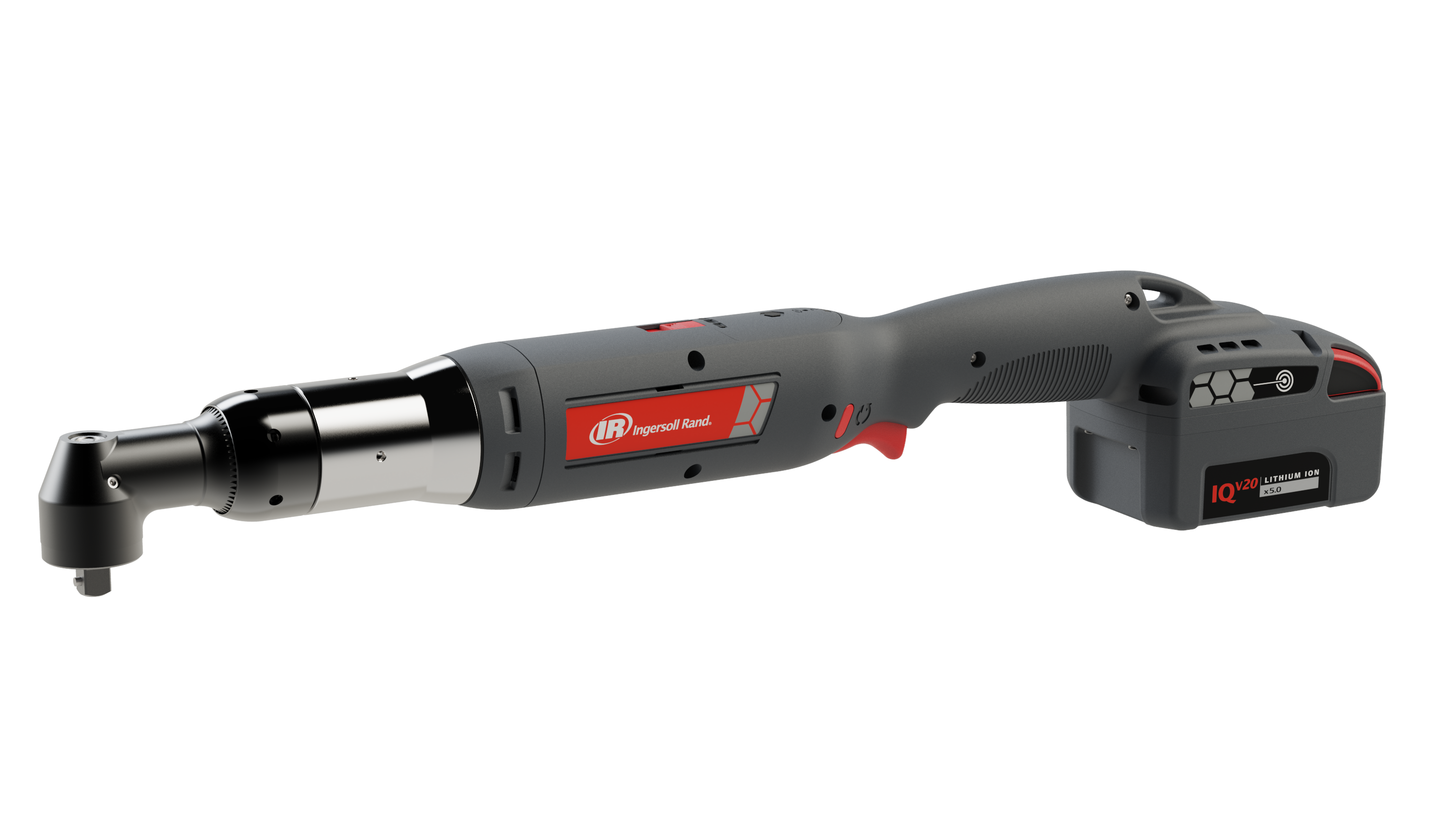

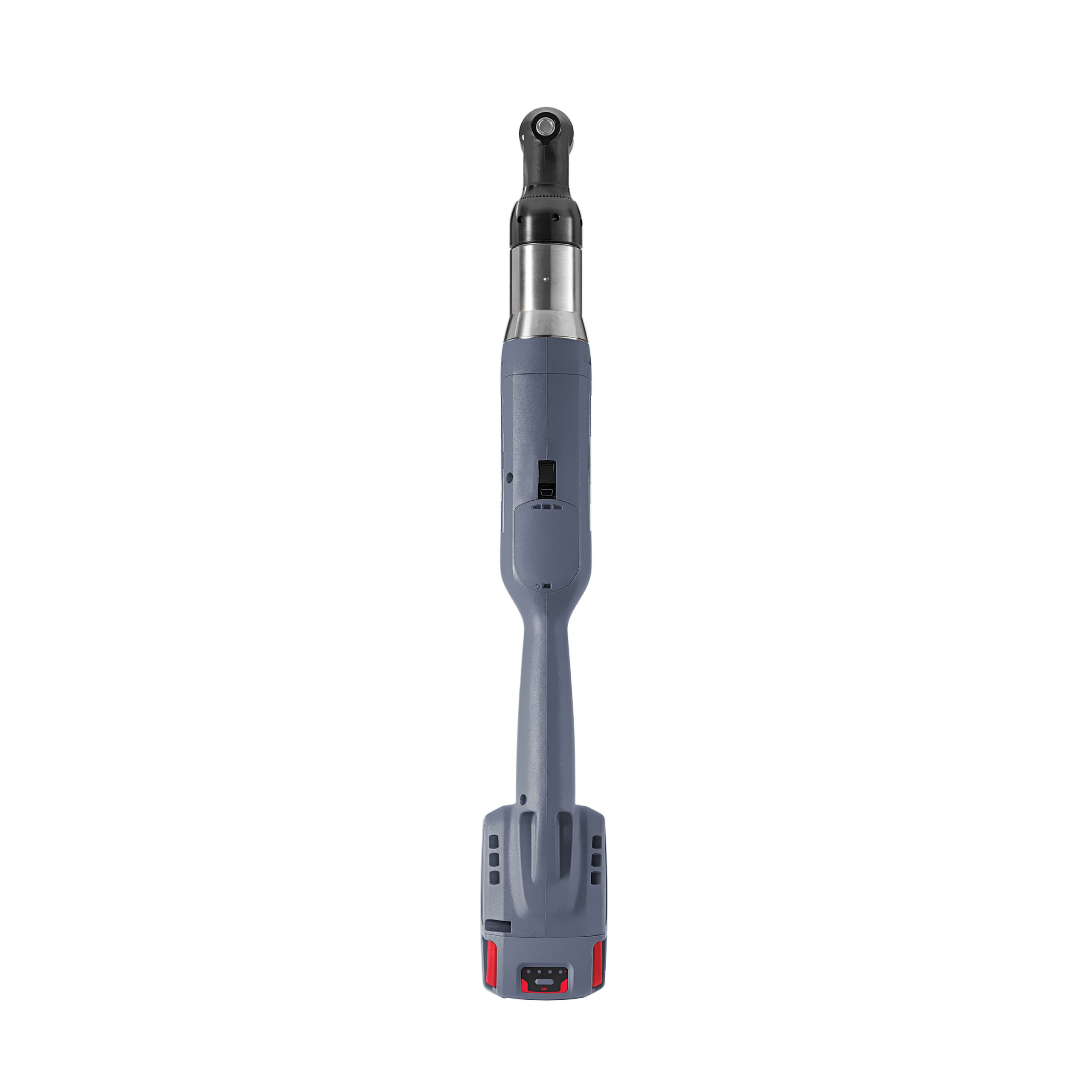

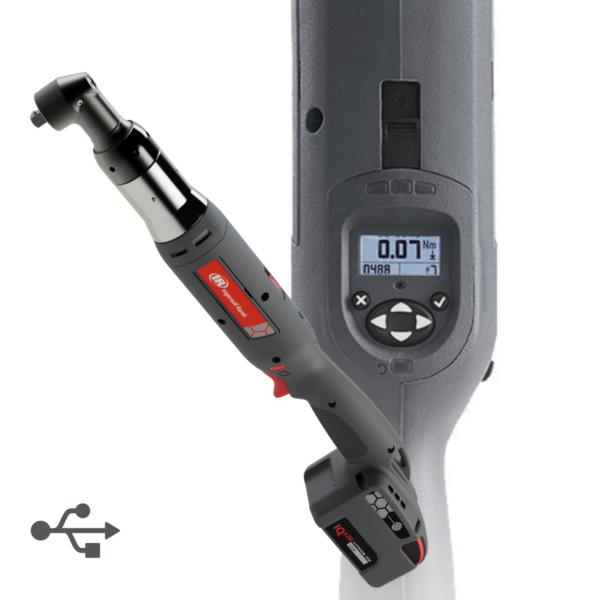

Increase the productivity of your assembly line with 20V angle Precision Screwdirver. Offering 32 programmable configurations in a single tool, this member of the QX Connect Series Precision Fastening System streamlines your operation into one tool with traceable, accurate results. Reducing torque reaction doesn’t have to be complicated with the QX Series Ergonomic Tightening System.
The QXBD and QXBN models also offer users the Bluetooth connectivity capability to wirelessly program the QX Connect Series tools using the INSIGHT Connect App.
No PDF files available.
Our service department covers the majority of Michigan, including Holland, Kalamazoo, Battle Creek, Jackson, Saginaw, and Cadillac, all the way up to the Upper Peninsula (U.P.). We also stock over $600,000 worth of Kaeser parts in our facility right here in Grand Rapids. Coupled with Kaeser’s 24-hour Parts Guarantee, you can be assured we will have what it takes to minimize your downtime and keep you running.
Our services include but are not limited to the following.
| Model | Configuration | Torque Range (Nm) | Torque Range (in-lbs) | Free Speed (RPM) | Drive Size/Type | Communication | Display | Battery Type | Weight w/out Battery (kg) | Weight w/out Battery (lbs) | Side to Center (mm) | Side To Center (in) | Length (mm) | Length (in) | Height with Slim Battery (mm) | Height with Slim Battery (in) | Height with Large Battery (mm) | Height with Large Battery (in) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| QXFD2AT05PQ4 | Right Angle | 1.0-5 | 9-44 | 1213 | 1/4 in. Quick Change | USB Only | Yes | 20V Li-ion | 1.14 | 2.5 | 9.2 | 0.36 | 550.2 | 21.67 | 80.6 | 3.17 | 100 | 3.94 |
| QXFD2AT10PS6 | Right Angle | 2.0-10 | 18-89 | 936 | 3/8 in. Square | USB Only | Yes | 20V Li-ion | 1.18 | 2.6 | 12.5 | 0.49 | 525 | 20.67 | 80.6 | 3.17 | 100 | 3.94 |
| QXFD2AT15PS6 | Right Angle | 3.0-15 | 27-133 | 600 | 3/8 in. Square | USB Only | Yes | 20V Li-ion | 1.18 | 2.6 | 12.5 | 0.49 | 525 | 20.67 | 80.6 | 3.17 | 100 | 3.94 |
| QXFD2AT18PQ4 | Right Angle | 3.6-18 | 32-159 | 500 | 1/4 in. Quick Change | USB Only | Yes | 20V Li-ion | 1.27 | 2.8 | 13.3 | 0.52 | 542 | 21.34 | 80.6 | 3.17 | 100 | 3.94 |
| QXFD2AT18PS6 | Right Angle | 3.6-18 | 32-159 | 500 | 3/8 in. Square | USB Only | Yes | 20V Li-ion | 1.27 | 2.8 | 13.3 | 0.52 | 542 | 21.34 | 80.6 | 3.17 | 100 | 3.94 |
| QXFD2AT27ES6 | Right Angle-ETS | 5.4-27 | 48-239 | 330 | 3/8 in. Square | USB Only | Yes | 20V Li-ion | 1.68 | 3.7 | 17.2 | 0.67 | 552 | 21.73 | 80.6 | 3.17 | 100 | 3.94 |
| QXFD2AT27PS6 | Right Angle | 5.4-27 | 48-239 | 330 | 3/8 in. Square | USB Only | Yes | 20V Li-ion | 1.68 | 3.7 | 17.2 | 0.67 | 552 | 21.73 | 80.6 | 3.17 | 100 | 3.94 |
