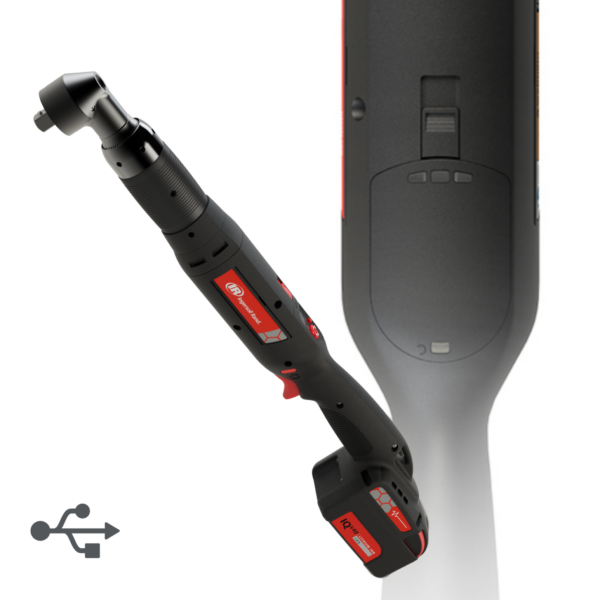

Designed to replace traditional clutch tools, the 40V high-torque angle QXFN Precision Screwdriver offers the precision and quality of the QX Connect Series in an affordable, simple to set up tool. Reducing torque reaction doesn’t have to be complicated with the QX Connect Series Ergonomic Tightening System.
Add mobility and enhance the simplicity and flexibility of Ingersoll Rand QX Connect Series cordless assembly tools with the INSIGHT Connect app.
No PDF files available.
Our service department covers the majority of Michigan, including Holland, Kalamazoo, Battle Creek, Jackson, Saginaw, and Cadillac, all the way up to the Upper Peninsula (U.P.). We also stock over $600,000 worth of Kaeser parts in our facility right here in Grand Rapids. Coupled with Kaeser’s 24-hour Parts Guarantee, you can be assured we will have what it takes to minimize your downtime and keep you running.
Our services include but are not limited to the following.
| Model | Configuration | Torque Range (Nm) | Torque Range (ft-lbs) | Free Speed (RPM) | Drive Size/Type | Communication | Display | Battery Type | Weight w/out Battery (kg) | Weight w/out Battery (lbs) | Side to Center (mm) | Side to Center (in) | Length (mm) | Length (in) | Height (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| QXFN5AT020PS06 | Right Angle | 4.0-20 | 2.9-14.8 | 1045 | 3/8 in. Square | USB Only | No | 40V Li-ion | 2.04 | 4.5 | 13.1 | 0.52 | 577.7 | 22.74 | 100 |
| QXFN5AT030PS06 | Right Angle | 6.0-30 | 4.4-22.1 | 775 | 3/8 in. Square | USB Only | No | 40V Li-ion | 2.18 | 4.8 | 17.2 | 0.68 | 581.8 | 22.91 | 100 |
| QXFN5AT030PS08 | Right Angle | 6.0-30 | 4.4-22.1 | 775 | 1/2 in. Square | USB Only | No | 40V Li-ion | 2.18 | 4.8 | 17.2 | 0.68 | 581.8 | 22.91 | 100 |
| QXFN5AT035PS06 | Right Angle | 7.0-35 | 5.2-25.8 | 640 | 3/8 in. Square | USB Only | No | 40V Li-ion | 2.18 | 4.8 | 17.2 | 0.68 | 581.8 | 22.91 | 100 |
| QXFN5AT035PS08 | Right Angle | 7.0-35 | 5.2-25.8 | 640 | 1/2 in. Square | USB Only | No | 40V Li-ion | 2.18 | 4.8 | 17.2 | 0.68 | 581.8 | 22.91 | 100 |
| QXFN5AT040ES08 | Right Angle-ETS | 8.0-40 | 5.9-29.5 | 545 | 1/2 in. Square | USB Only | No | 40V Li-ion | 2.27 | 5 | 21.6 | 0.85 | 586.1 | 23.07 | 100 |
| QXFN5AT040PS08 | Right Angle | 8.0-40 | 5.9-29.5 | 545 | 1/2 in. Square | USB Only | No | 40V Li-ion | 2.27 | 5 | 21.6 | 0.85 | 586.1 | 23.07 | 100 |
| QXFN5AT080ES08 | Right Angle-ETS | 12.0-80 | 8.8-59.0 | 375 | 1/2 in. Square | USB Only | No | 40V Li-ion | 2.27 | 5 | 21.6 | 0.85 | 586.1 | 23.07 | 100 |
| QXFN5AT080PS08 | Right Angle | 12.0-80 | 8.8-59.0 | 375 | 1/2 in. Square | USB Only | No | 40V Li-ion | 2.27 | 5 | 21.6 | 0.85 | 586.1 | 23.07 | 100 |
