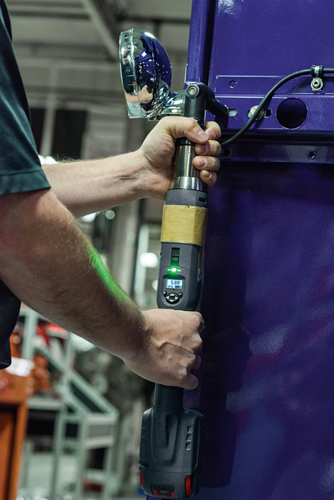

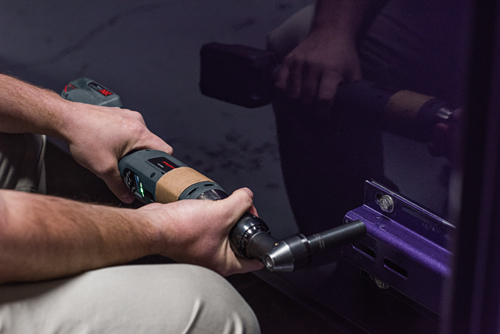

A member of the QX Connect Series Precision Fastening System, the 20V angle QXXD and QXXN Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this angle wrench is designed to improve accuracy and productivity of your precision fastening and assembly operations. Reducing torque reaction doesn’t have to be complicated with the QX Connect Series Ergonomic Tightening System.
The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App.
No PDF files available.
Our service department covers the majority of Michigan, including Holland, Kalamazoo, Battle Creek, Jackson, Saginaw, and Cadillac, all the way up to the Upper Peninsula (U.P.). We also stock over $600,000 worth of Kaeser parts in our facility right here in Grand Rapids. Coupled with Kaeser’s 24-hour Parts Guarantee, you can be assured we will have what it takes to minimize your downtime and keep you running.
Our services include but are not limited to the following.
| Model | Configuration | Torque Range (Nm) | Torque Range (in-lbs) | Free Speed (RPM) | Drive Size/Type | Communication | Display | Battery Type | Weight w/out Battery (kg) | Weight w/out Battery (lbs) | Side to Center (mm) | Side to Center (in) | Length (mm) | Length (in) | Height with Slim Battery (mm) | Height with Slim Battery (in) | Height with Large Battery (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| QXXD2AT005PQ04 | Right Angle | 1.0-5 | 9-44 | 1213 | 1/4 in. Quick Change | Wireless Enabled + USB | Yes | 20V Li-ion | 1.14 | 2.5 | 9.2 | 0.36 | 550.2 | 21.67 | 80.6 | 3.17 | 100 |
| QXXD2AT010PS06 | Right Angle | 2.0-10 | 18-89 | 936 | 3/8 in. Square | Wireless Enabled + USB | Yes | 20V Li-ion | 1.18 | 2.6 | 12.5 | 0.49 | 525 | 20.67 | 80.6 | 3.17 | 100 |
| QXXD2AT015PS06 | Right Angle | 3.0-15 | 27-133 | 600 | 3/8 in. Square | Wireless Enabled + USB | Yes | 20V Li-ion | 1.18 | 2.6 | 12.5 | 0.49 | 525 | 20.67 | 80.6 | 3.17 | 100 |
| QXXD2AT018PQ04 | Right Angle | 3.6-18 | 32-159 | 500 | 1/4 in. Quick Change | Wireless Enabled + USB | Yes | 20V Li-ion | 1.27 | 2.8 | 13.3 | 0.52 | 542 | 21.34 | 80.6 | 3.17 | 100 |
| QXXD2AT018PS06 | Right Angle | 3.6-18 | 32-159 | 500 | 3/8 in. Square | Wireless Enabled + USB | Yes | 20V Li-ion | 1.27 | 2.8 | 13.3 | 0.52 | 542 | 21.34 | 80.6 | 3.17 | 100 |
| QXXD2AT027ES06 | Right Angle-ETS | 5.4-27 | 48-239 | 330 | 3/8 in. Square | Wireless Enabled + USB | Yes | 20V Li-ion | 1.68 | 3.7 | 17.2 | 0.67 | 552 | 21.73 | 80.6 | 3.17 | 100 |
